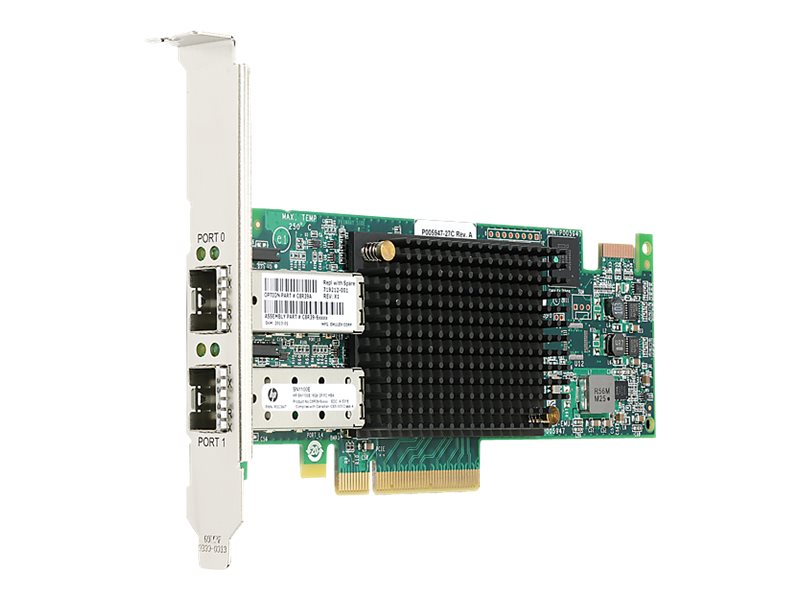

HPE StoreFabric SN1100E - host bus adapter - PCIe 3.0 x8 - 16Gb Fibre Channel x 2
Device Type
Host bus adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 3.0 x8
PCI Specification Revision
PCIe 3.0
Ports
16Gb Fibre Channel x 2
Dimensions (WxDxH)
1.4 in x 9.1 in x 5.1 in
Cabling Type
Fiber optic
Data Link Protocol
16Gb Fibre Channel (SW)
Data Transfer Rate
14.025 Gbps
System Requirements
SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2008 (32/64-bits), VMware ESXi, VMware ESX
General
Device Type
Host bus adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 3.0 x8
PCI Specification Revision
PCIe 3.0
Expansion / Connectivity
Expansion Slots
2 (total) / 0 (free) x SFP+
Interfaces
2 x 16Gb Fibre Channel (Short Wave) - LC multi-mode
Miscellaneous
Included Accessories
Low-profile bracket, full-height bracket, 2 x 16Gb SFP+
Networking
Ports
16Gb Fibre Channel x 2
Connectivity Technology
Wired
Cabling Type
Fiber optic
Data Link Protocol
16Gb Fibre Channel (Short Wave)
Data Transfer Rate
14.025 Gbps
Features
Auto-negotiation
Software / System Requirements
OS Required
SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2008 (32/64-bits), VMware ESXi, VMware ESX
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
15 - 80% (non-condensing)
Dimensions & Weight
Width
1.4 in
Depth
9.1 in
Height
5.1 in
