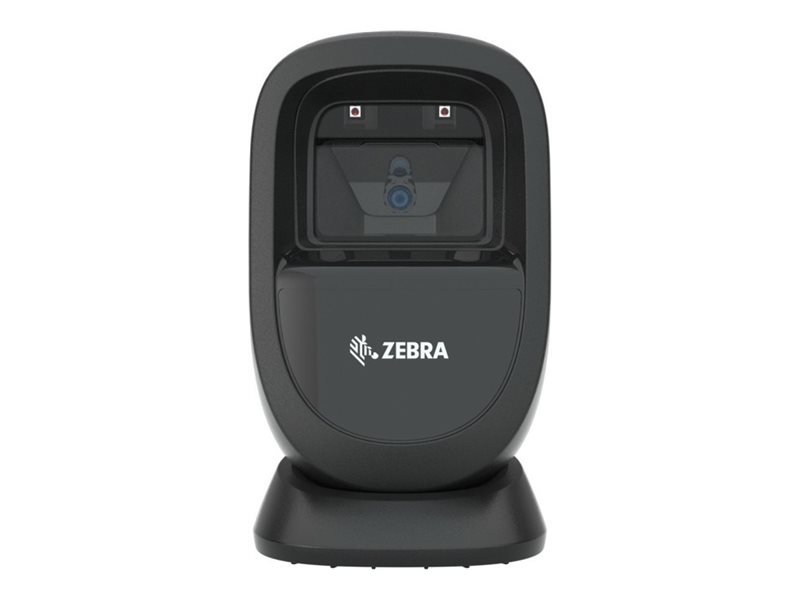

Barcode scanner - desktop - SR - 2D imager - 120.1 inch / sec - decoded - USB, RS-232
| Main Specifications | |
|---|---|
| Product Description | Zebra DS9300 Series DS9308 - barcode scanner |
| Type | Barcode scanner - desktop - USB, RS-232 - decoded |
| Color | Midnight black |
| Minimum Bar Width | 3 mil |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Element Type | 2D imager - red LED |
| Sensor Resolution | 1280 x 800 |
| Scan Speed | 120.1 inch / sec |
| Connectivity Technology | Wired |
| Dimensions (WxDxH) | 3.3 in x 3.4 in x 5.7 in |
| Weight | 11.22 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Type | Barcode scanner - desktop |
| Color | Midnight black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EN 61000-4-2, IP52, EN 50581:2012, EN 62471:2008, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class B, EN 55024:2010+A1:2015, EN 62368-1, IEC 62368-1, ICES-003 issue 6 Class B, EN 55032:2012+AC:2013 Class B, EN 61000-3-2:2014 Class A, IEC 62471-1:2006, EN 55032:2015+AC:2016 Class B, EN 55035:2017 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 5 ft to concrete |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 3.4 in |
| Height | 5.7 in |
| Weight | 11.22 oz |
| Barcode | |
| Interface Type | USB, RS-232 |
| Minimum Bar Width | 3 mil |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Element Type | 2D imager - red LED |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Scan Speed | 120.1 inch / sec |
| Max Working Distance | 11 in |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | Code 39, Code 128, Code 93, Codabar, Code 11, MSI-Plessey, UPC, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, EAN/JAN, PDF417, Micro PDF417, Composite Codes, TLC39, Aztec, DataMatrix, MaxiCode, QR code, Micro QR code, Han Xin, SecurPharm, DotCode, Dotted DataMatrix, OCR-A, OCR-B, MICR, US currency serial number |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
 |  |
