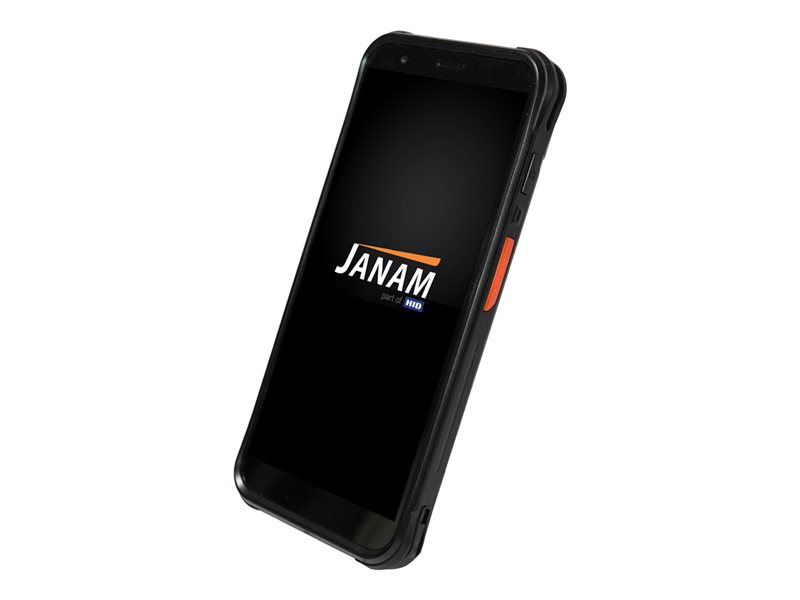

Data collection terminal - rugged - Android 14 - 128 GB - 6" TFT (1080 x 2160) - rear camera + front camera - barcode reader - (2D imager) - microSD slot - Wi-Fi 6, Bluetooth, NFC
| Main Specifications | |
|---|---|
| Product Description | Janam XT4 - data collection terminal - Android 14 - 128 GB - 6" |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 14 |
| Display | 6" TFT - 1080 x 2160 - Multi-Touch |
| Processor | Qualcomm 6490 (8-core) |
| Processor Clock Speed | 2.7 GHz |
| Storage | 128 GB |
| RAM | 8 GB |
| Cellular Protocols | 4G LTE, 5G FR1 |
| Wireless Connectivity | 802.11a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, Bluetooth 5.2, NFC |
| Rear Camera | 16 Megapixel focus: automatic |
| Front Camera | 8 Megapixel |
| Navigation System | A-GPS/GPS/GLONASS/Galileo/Beidou/QZSS |
| Barcode Reader | Yes (2D imager) |
| RFID Specification | ISO 14443A, ISO 14443B, Mifare, DESFire |
| Dimensions (WxDxH) | 3.1 in x 0.7 in x 6.6 in |
| General | |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 14 |
| Memory | |
| Storage | 128 GB |
| RAM | 8 GB |
| Miscellaneous | |
| Sensors | Light sensor, proximity sensor, accelerometer, gyroscope, digital compass |
| Features | LED indicator, drop-resistant, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air), 2x2 MiMo function |
| Vibrating Alert | Yes |
| Included Accessories | Hand strap |
| Compliant Standards | IP67, RoHS, WEEE, FCC, IC, ENACOM, RCM, ANATEL, Subtel, WPC, CITC, NRCAN, CEC, DOE, ATEX Zone 2 |
| Processor | |
| Processor | Qualcomm 6490 |
| Processor Clock Speed | 2.7 GHz |
| Number of Cores | 8-core |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Software | |
| Preloaded Software | Google Mobile Services |
| Battery | |
| Technology | Lithium ion |
| Capacity | 5200 mAh |
| Display | |
| Type | 6" TFT |
| Resolution | 1080 x 2160 |
| Touchscreen | Multi-Touch |
| Features | Capacitive touch screen |
| Communications | |
| Cellular Protocols | 4G LTE, 5G FR1 |
| Wireless Connectivity | 802.11a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, Bluetooth 5.2, NFC |
| Security Protocols & Features | WEP, WPA, WPA2-Personal, TKIP, AES, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise, EAP-TLS, EAP-TTLS, EAP-SIM, EAP-AKA, WPA-Enterprise |
| Dimensions & Weight | |
| Width | 3.1 in |
| Depth | 0.7 in |
| Height | 6.6 in |
| Barcodes | |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| RFID | |
| RFID Specification | ISO 14443A, ISO 14443B, Mifare, DESFire |
| Multimedia | |
| Audio | Microphone, speaker |
| Expansion and Connectivity | |
| Expansion Slots | 1 x microSD |
| Interfaces | 1 x USB-C |
| Navigation System | |
| Receiver | A-GPS/GPS/GLONASS/Galileo/Beidou/QZSS |
| Front Camera | |
| Sensor Resolution | 8 Megapixel |
| Rear Camera | |
| Sensor Resolution | 16 Megapixel |
| Focus Adjustment | Automatic |
| Light Source | LED flash |
 |  |
