SIIG DP Cyber 4S
- Back to Results
|
Main Specifications
|
|---|
|
Product Description
|

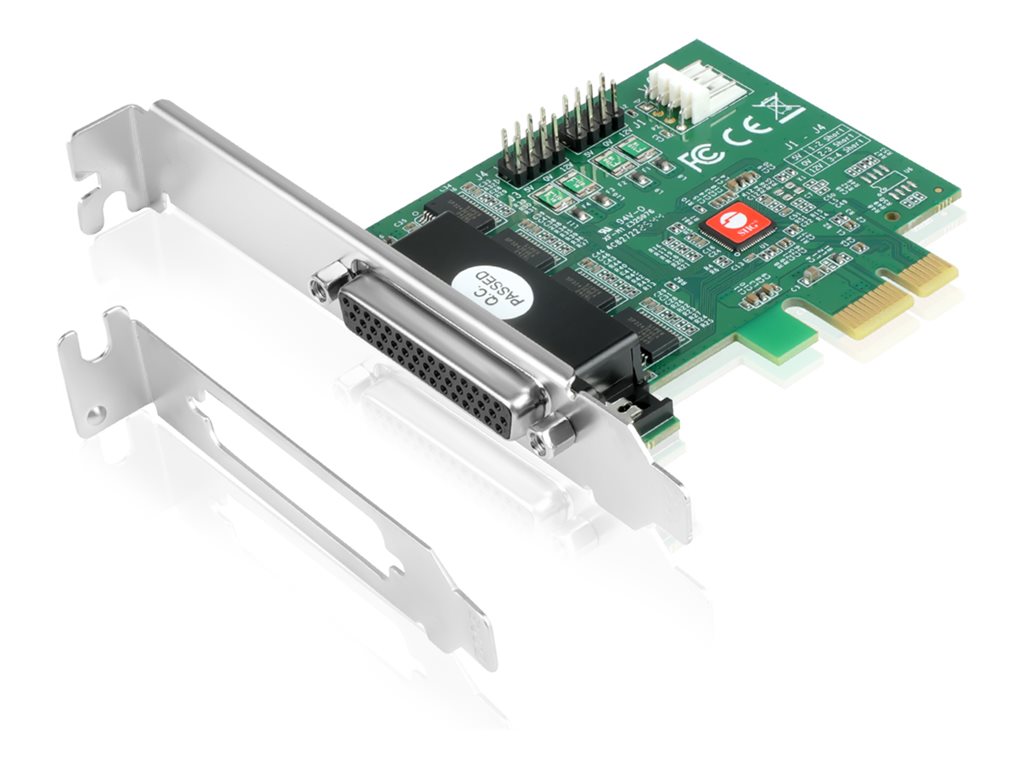

SIIG DP Cyber 4S - serial adapter - PCIe - RS-232 x 1 - TAA Compliant
|
|
Device Type
|
Serial adapter
|
|
Form Factor
|
Plug-in card - low profile
|
|
Interface (Bus) Type
|
PCI Express x1
|
|
PCI Specification Revision
|
PCIe 2.0
|
|
Ports
|
RS-232 x 1
|
|
Dimensions (WxDxH)
|
0.8 in x 4.7 in x 3.6 in
|
|
Weight
|
1.76 oz
|
|
Data Link Protocol
|
RS-232
|
|
Data Transfer Rate
|
921 Kbps
|
|
Processor
|
ASIX AX99100
|
|
Color
|
Green
|
|
System Requirements
|
Microsoft Windows XP / Vista / 7 / 10, Windows 11, Windows 8.x
|
|
TAA Compliant
|
Yes
|
|
Manufacturer Warranty
|
2-year warranty
|
|
General
|
|---|
|
Device Type
|
Serial adapter
|
|
Form Factor
|
Plug-in card - low profile
|
|
Interface (Bus) Type
|
PCI Express x1
|
|
PCI Specification Revision
|
PCIe 2.0
|
|
Expansion / Connectivity
|
|---|
|
Interfaces
|
1 x RS-232 - 9 pin D-Sub (DB-9)
|
|
Manufacturer Warranty
|
|---|
|
Service & Support
|
Limited warranty - 2 years
|
|
Miscellaneous
|
|---|
|

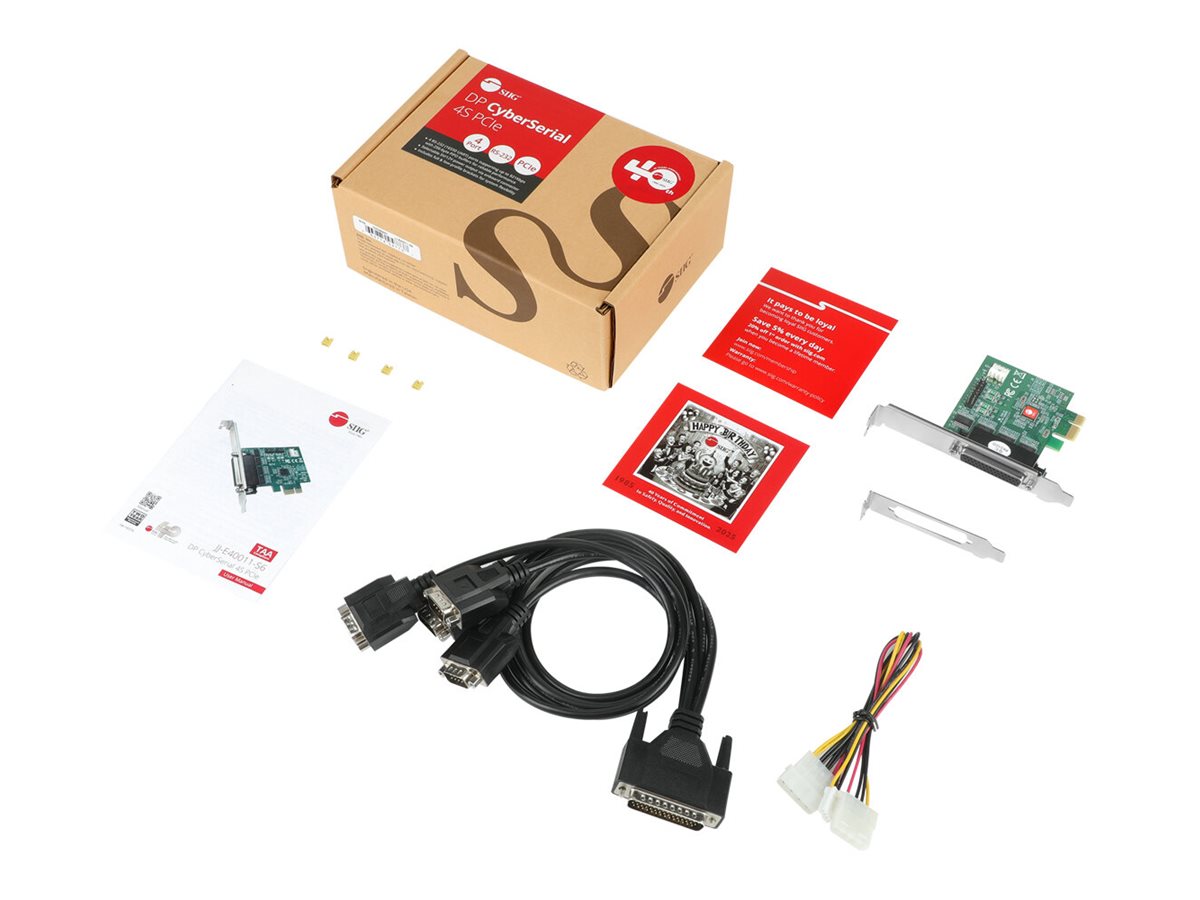

Included Accessories
|

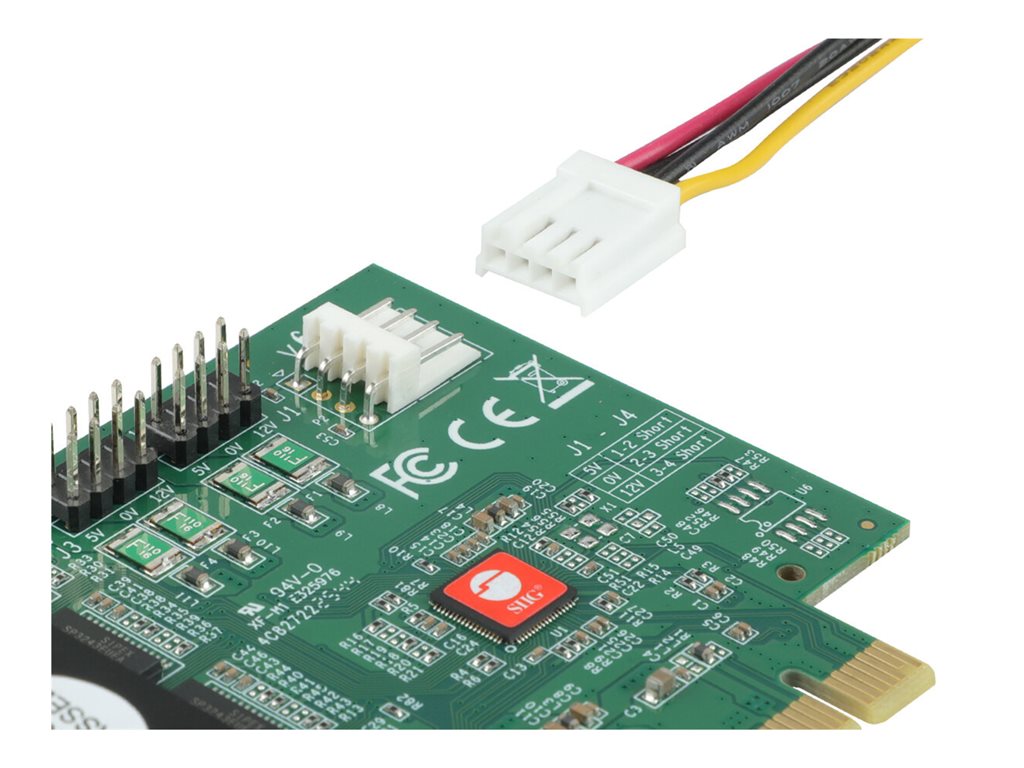

Low-profile bracket, power cable
|
|
Cables Included
|

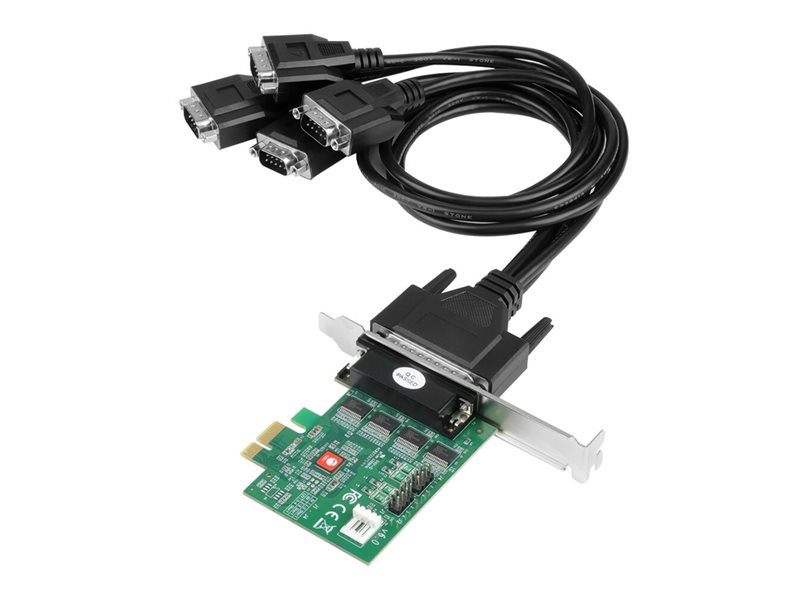

1 x 4 x DB-9 to RS-232 cable (external)
|
|
Compliant Standards
|
FCC, RoHS
|
|
Color
|
Green
|
|
TAA Compliant
|
Yes
|
|
Networking
|
|---|
|
Ports
|
RS-232 x 1
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
RS-232
|
|
Data Transfer Rate
|
921 Kbps
|
|
Features
|
Software flow control, 256-byte FIFO, 16550 UART support
|
|
Software / System Requirements
|
|---|
|
Software Included
|
Driver
|
|
OS Required
|
Microsoft Windows XP / Vista / 7 / 10, Windows 11, Windows 8.x
|
|
Environmental Parameters
|
|---|
|
Min Operating Temperature
|
32 °F
|
|
Max Operating Temperature
|
140 °F
|
|
Humidity Range Operating
|
5 - 90% (non-condensing)
|
|
Processor / Memory
|
|---|
|
Processor
|
ASIX AX99100
|
|
Dimensions & Weight
|
|---|
|
Width
|
0.8 in
|
|
Depth
|
4.7 in
|
|
Height
|
3.6 in
|
|
Weight
|
1.76 oz
|
